POST INDICATOR VALVE

Post Indicator Valve

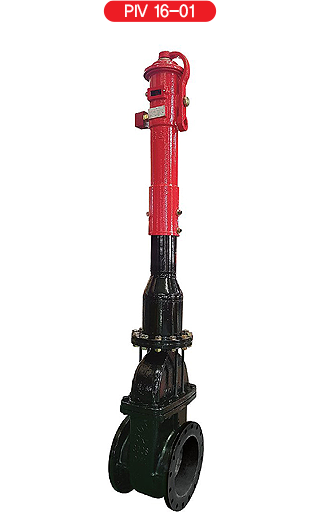

P.I.V is the item installed on the underground water supply pipe line system to control water supply. It has a display window that helps people to find whether the valve is open or not.
Hydrant is the one used when pipe line keeps the maintenance and it is designed as lever type. It is very easy to use it.

•

•

OPERATION

1) Normally, the valve remains open.
2) If fire hydrant or pipeline maintenance is required, the Lever type will turn the wrench clockwise through the square rods at the top of the posts and close the valves.
3) After finishing the operation, turn the square rod on the top of the post counterclockwise using the wrench to make the valve fully open, and then check that the "Open" mark is in the center of the display

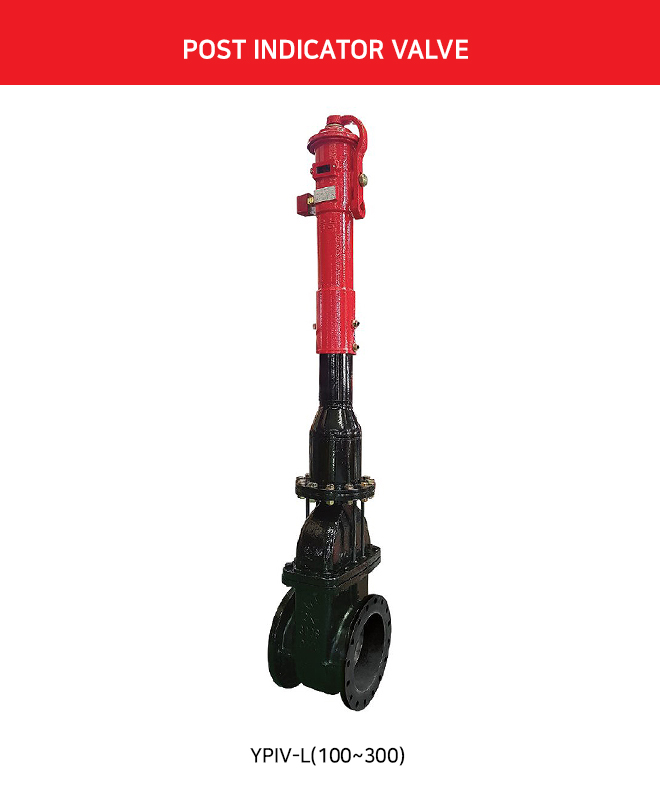

YPIV-L(100~300)

SPECIFICATIONS

VALVE TYPE	GATE VALVE, NRS (Non-Rising System) TYPE
POST TYPE	LEVER TYPE
SIZE	4 - 12 KS 10K FF FLANGE
FLANGE DIMENSION	KS B 1510
PRESSURE TEST	KFI STANDARD
TEST PRESSURE	2.6 MPa (BODY) / 1.32 MPa (DISC)
VALVE	DUCTILE / CAST STEEL / CAST IRON
DISK	DUCTILE or CAST STEEL w/ EPDM RUBBER COATED
POST INDICATOR	CARBON STEEL & CAST IRON
PAINT	GATE VALVE : DRY POWDER EPOXY PAINT IN BLACK POST INDICATOR : DRY POWDER EPOXY PAINT IN RED & BLACK
ACCESSORY	TAMPER SWITCH / LOCKING DEVICE

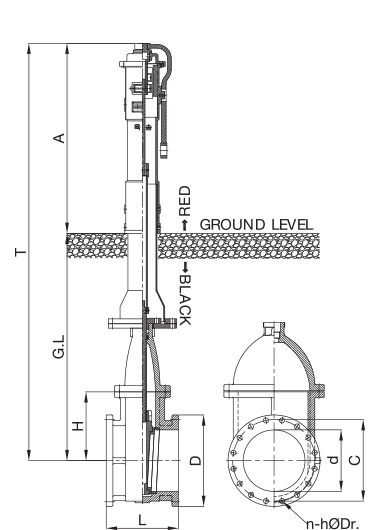

DIMENSION	ABOVE : 900 mm G.L : 700 ~ 1800 mm
MODEL	YPIV-L 100	YPIV-L 150	YPIV-L 200	YPIV-L 250	YPIV-L 300
SIZE	4″	6″	8″	10″	12″
L	230	270	290	330	350
d(Ø)	100	150	200	250	300
C(Ø)	175	240	290	355	400
D(Ø)	210	280	330	400	445
n	8	8	12	12	16
h(Ø)	23	23	23	25	25
H	304	401	495	584	689
G.L	700~1500	700~1500	700~1500	900~1700	1000~1800
T	1620~2420	1620~2420	1620~2420	1820~2620	1920~2720

* A : 925 ±20 mm
