FIRE
NOZZLE

HANDLINE NOZZLE (AIR FOAM NOZZLE-STRAIGHT TYPE)

It is useful for oil and gas fire situation. A foam fire extinguishing agent gets mix with air to create special foam and then used for fire suppression. There are two different types to use this product, there are non-pick-up and pick-up type.
Non-pick-up type: Does not have to connect foam fire extinguishing agent Pick-up type: must connect foam fire extinguishing agent suction area to use it
This item is normally used in dangerous material storage, outdoor petrol tank, liquefied gas storage, aircraft shelter, and a chemical plant.

• •Foam concentrate 3 % (Standard)

•

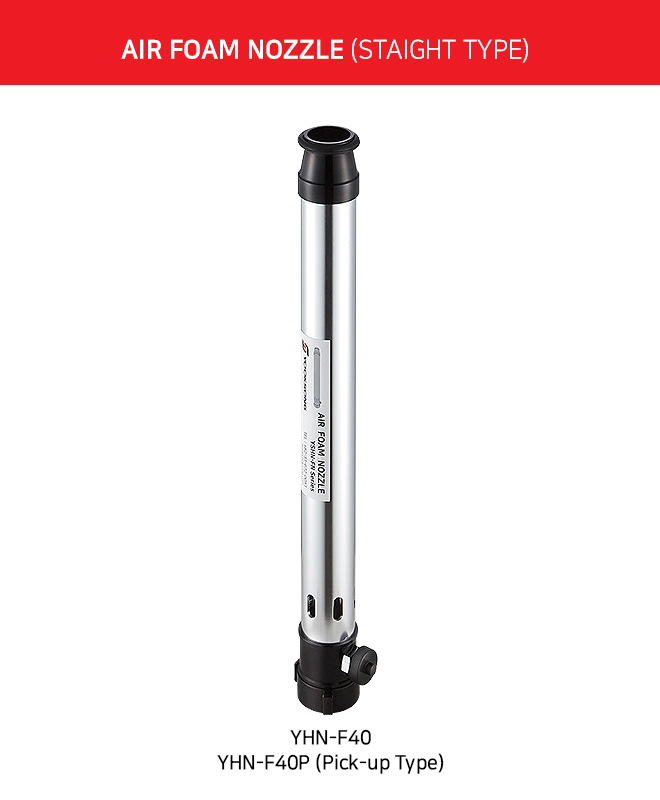

  YHN-F40
  YHN-F40P (Pick-up Type)
•

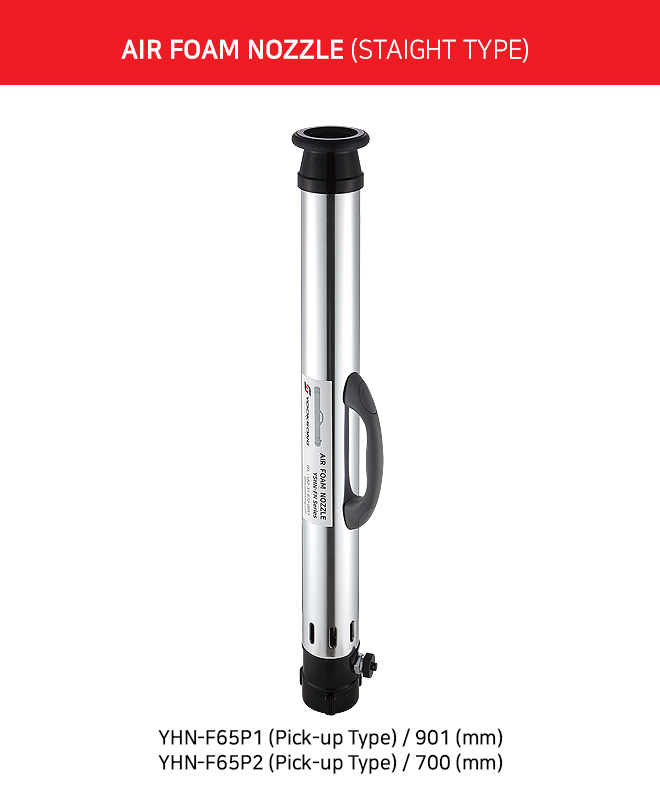

  YHN-F65P1 (Pick-up Type) / 901 (mm)
  YHN-F65P2 (Pick-up Type) / 700 (mm)
• Pick-up Hose 장착 예시

SPECIFICATIONS

SPECIFICATIONS

SIZE	FE40 (1½″)	FE65(2½″)
SHOOTING RANGE (0.7 MPa)	Over 30 m	Over 38 m
FLOW RATE (0.3 MPa)	Over 180 L/min	Over 400 L/min
LENGTH (mm)	600	700 / 901
WEIGHT (kg)	1.2	2.9 / 3.3
MATERIAL	AL-ALLOY
APPROVAL	KFI
