FIRE
NOZZLE

HANDLINE NOZZLE (STRAIGHT TYPE NOZZLE)

The standardized model nozzle where it connects to a fire hose to spray water in straight direction.

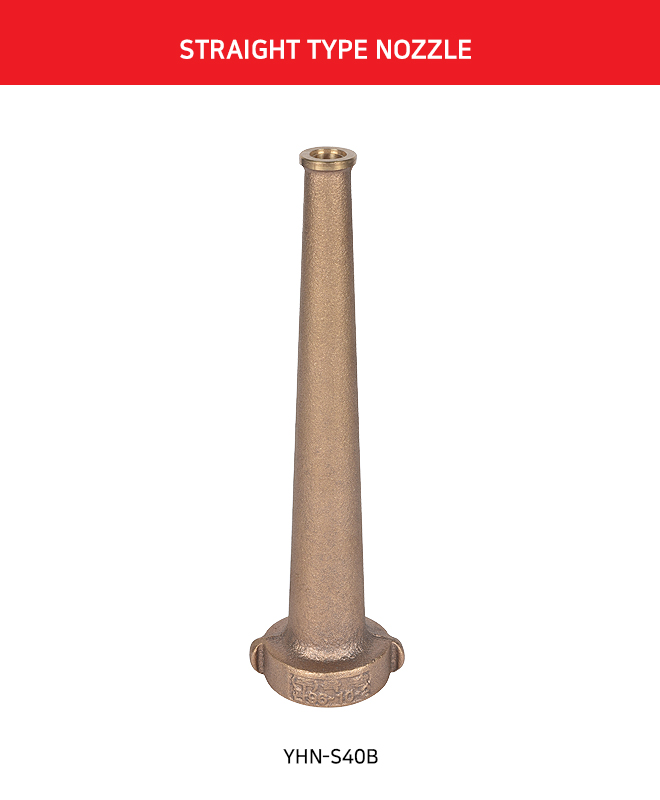

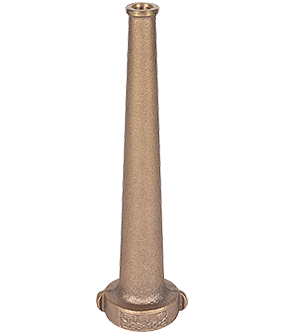

  •  YHN-S40B

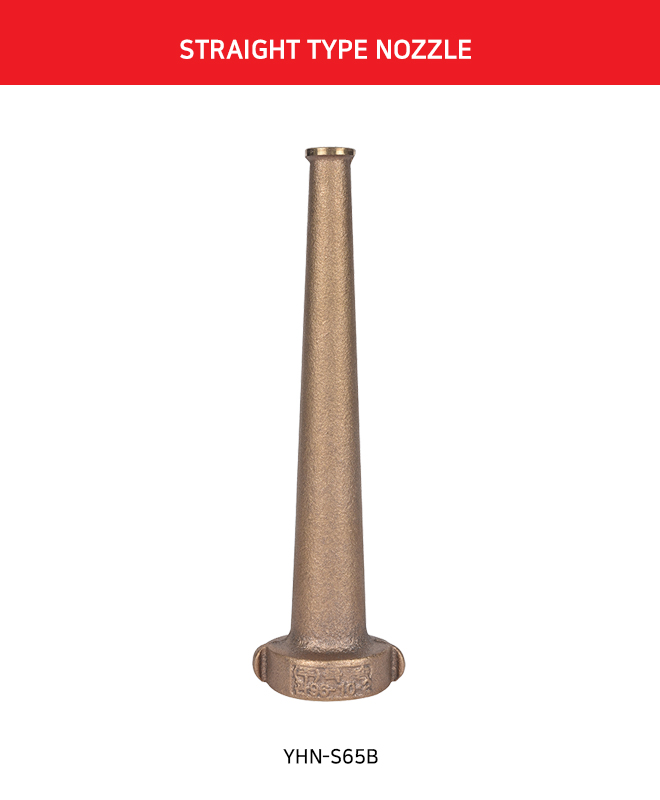

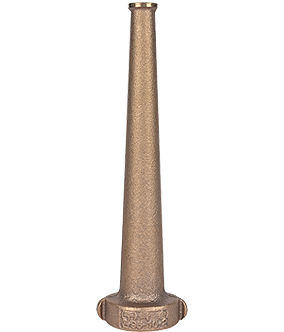

  •  YHN-S65B
SPECIFICATIONS
SPECIFICATIONS
MODEL YHN-S40B YHN-S65B
CONN. SIZE FE40 FE65
FLOW RATE (0.35 MPa) 170ℓ/min 280ℓ/min
DISCHARGE TYPE STRAIGHT
TEST PRESSURE 2.0 MPa
LENGTH (m/m) 254 305
WEIGHT (KG) 0.8 1.87
MATERIAL BRONZE
REMARK HYDRANT
APPROVAL KFI
