FIRE
NOZZLE

HANDLINE NOZZLE (NON-REACTION PISTOL NOZZLE)

This non-reaction pistol automatically self-regulates the recoil from water pressure. And because of the
self-regulation, it performs excellent shooting function. The pistol also contains excellent smoke control feature
which makes this product to be more useful for firefighters to use in operation situations.

• •Approval for reduces reaction force (Kangwon-University)
• •Awarded 2018 Korea fire industry award
• •Patented Product (Korea, and worldwide)
• Difference from the past products:
• •In fire suppression situation, the product helps user to prevent falling off of physical strength.
• •Excellent in safety accident prevention.
• •Useful in ultra-high-water pressure needed situation.

•

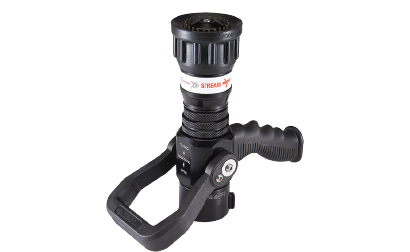

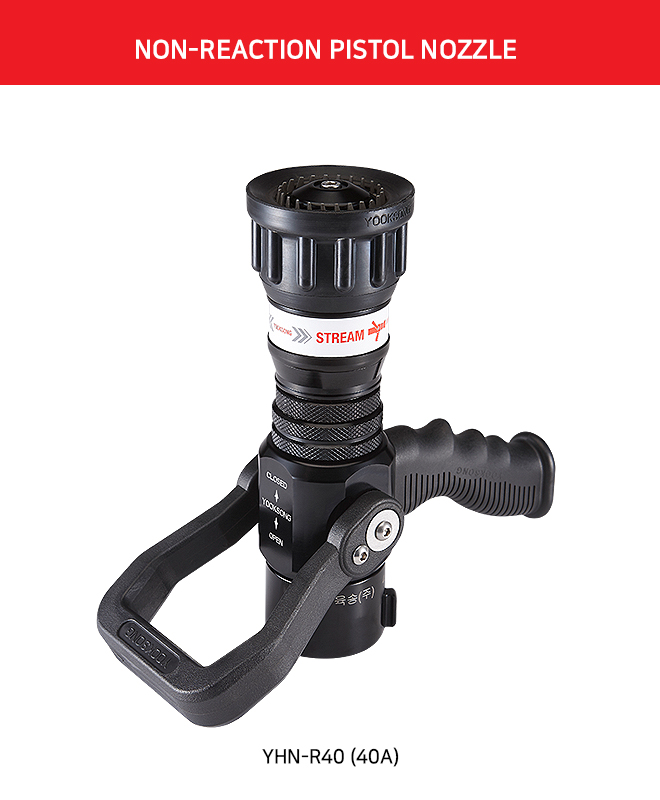

  YHN-R Series (40A)
•

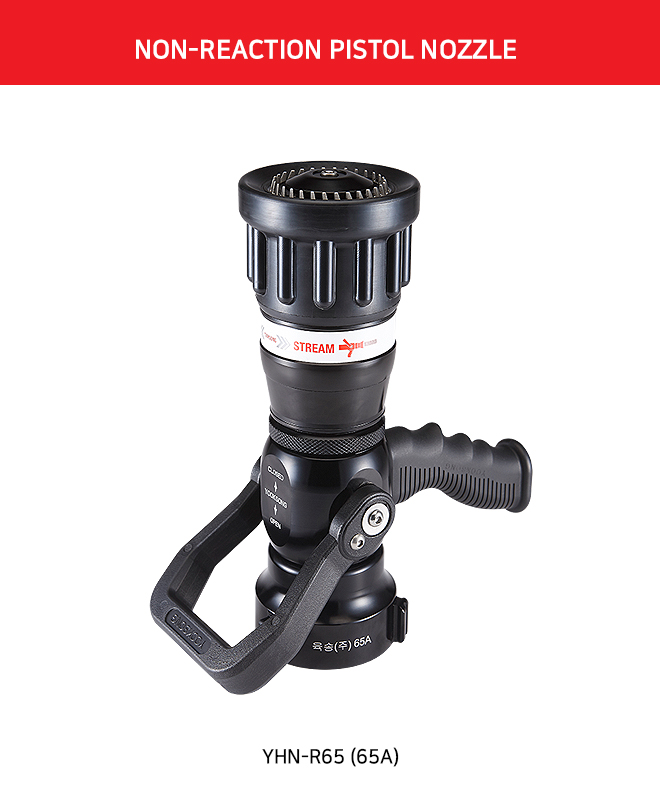

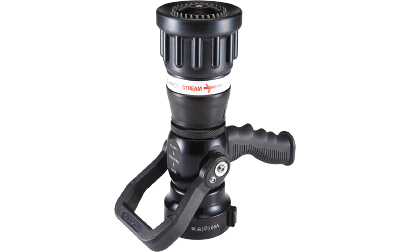

  YHN-R Series (65A)

SPECIFICATIONS

SPECIFICATIONS

SIZE	FE40 (1½″)	FE65(2½″)
SHOOTING RANGE (0.7 MPa)	Over 50 m
FLOW RATE (0.7 MPa)	Over 450 L/min	Over 945 L/min
LENGTH (mm)	245	294
WEIGHT (kg)	1.8	3.2
MATERIAL	AL-ALLOY
APPROVAL	KFI
FUNCTION	Reduces Reaction Force, Large flow rates, Smoke Elimination, Anti-twist Coupling
