HANDLINE NOZZLE (MULTI-PURPOSE PISTOL NOZZLE)

Multi-purpose pistol nozzle is the product designed on the basis of different nozzle product features. The basic nozzle only had straight, fog-spray mode, and water-flow control system, but multi-purpose pistol nozzle includes all above three functions + water-screen and smoke-control features. Water screen mode is to protect firefighters from the fire and this new function can be used while shooting the water at the same time. And a weight of multi-purpose pistol nozzle is very light, even though multiple functions are included.

• •Awarded 2011 Korea fire industry awards (Prime minister prize)
• •Patented product (Korea)
• Specificity
• •High-intensity plastic grip
• •Made with aluminum alloy
• •High durability

•

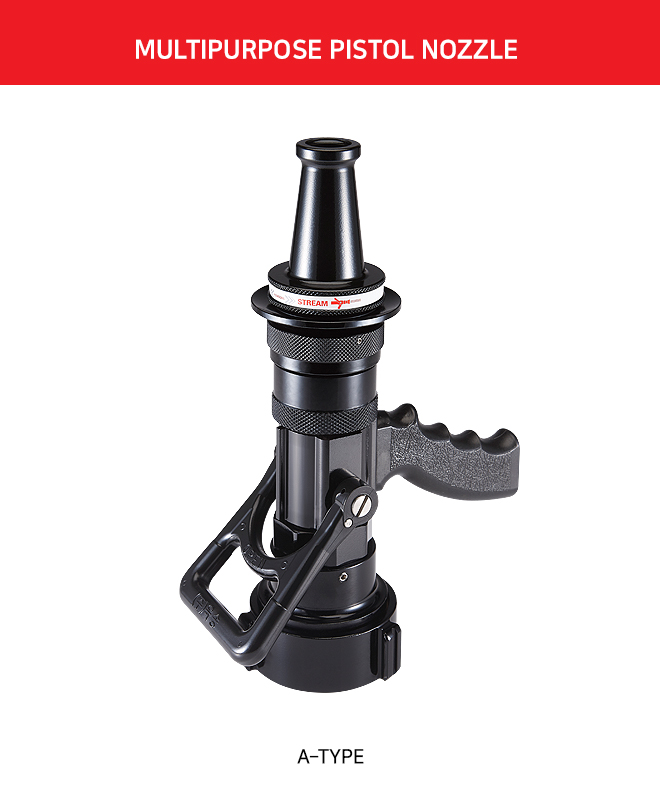

  A–TYPEStraight shooting +
  Water screen
•

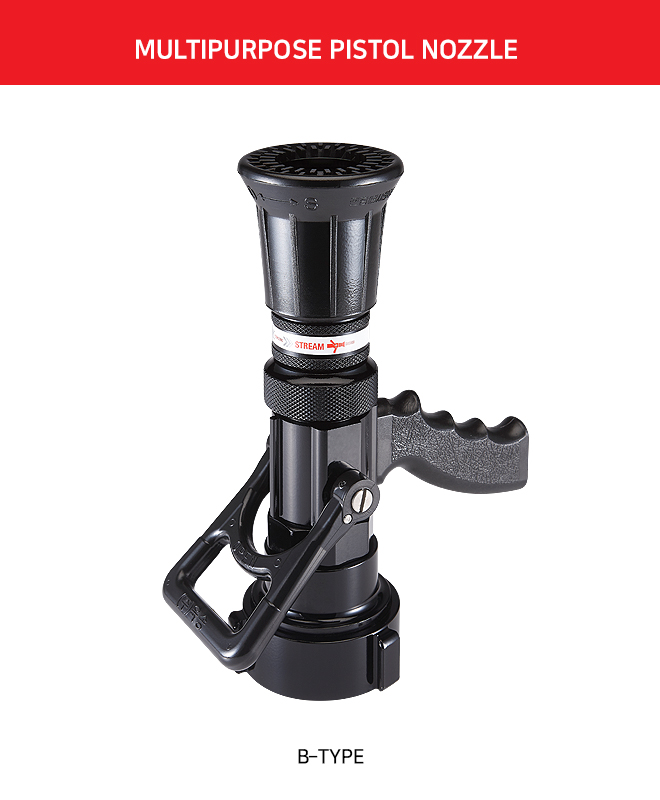

  B–TYPEStraight + Fog
  shooting
•
  C–TYPEStraight & Fog shooting
  + Smoke elimination +
  Flow control valve
•

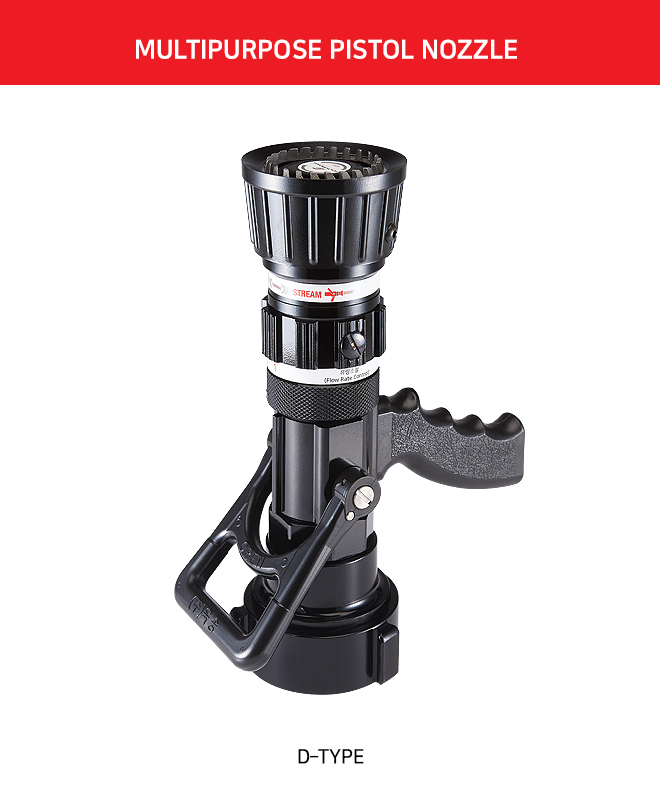

  D–TYPEStraight & Fog shooting +
  Smoke elimination + Flow
  control valve + Water screen

MODEL

MODEL

ABOUT	A-TYPE	B-TYPE	C-TYPE	D-TYPE
FE40(1½″)	YHN-MP40A	YHN-MP40B	YHN-MP40C	YHN-MP40D
FE65(2½″)	YHN-MP65A	YHN-MP65B	YHN-MP65C	YHN-MP65D

SPECIFICATIONS

SPECIFICATIONS

SIZE	FE40 (1½″)	FE65(2½″)
SHOOTING RANGE (0.7 MPa)	Over 45 m
FLOW RATE (0.7 MPa)	180~240~350~500 (L/min)	650~750~870~1050 (L/min)
LENGTH (mm)	A : 275	A : 350
	B : 270	B : 310
	C : 275	C : 310
	D : 333	D : 367
WEIGHT (kg)	A : 1.54	A : 1.91
	B : 1.44	B : 1.89
	C : 1.87	C : 2.16
	D : 2.22	D : 2.51
MATERIAL	AL-ALLOY
APPROVAL	KFI
