FOAM
EQUIPMENT

FOAM LIQUID TANK
폼 리퀴드 탱크

폼 원액을 저장하는 장비로서 화재 시 저장되어있는 폼 원액을 물과 혼합 될 수 있게 방출하는 장비이다.
혼합방식에 따라 Pressure Proportioning System, Pressure Side Proportioning system 또는 Pump-Proportioning System이 있다.


  •  YFLT
SPECIFICATIONS
SPECIFICATIONS

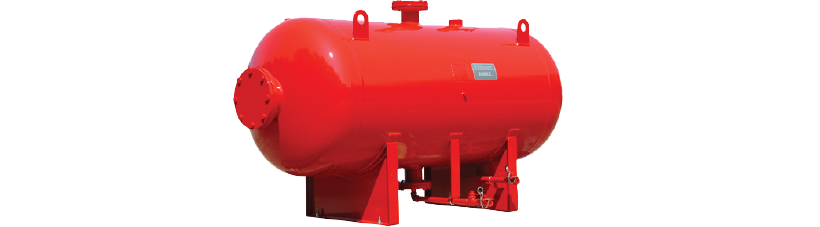

TYPE Horizontal
Internal Bladder Type 		Vertical
Internal Bladder Type
MATERIAL Carbon Steel / Stainless Steel / BUNA-N Rubber(Bladder)
WORKING PRESSURE 0.7 ~ 0.9 MPa (Max 1.4 MPa)
DESIGN PRESSURE 1 MPa (Max 1.4 MPa)
TEST PRESSURE 2 MPa
PAINTING Red or Yellow Epoxy paint coated (Surface) Epoxy urethane (Inside of Tank)
FLANGE KS Standard / ANSI Standard
HORIZONTAL TYPE / Unit (mm)
MODEL
CAPACITY (GALLON) DIMENSION
A B C D E
100 602 1,816 820 340 800
200 808 2,218 1,000 570 800
300 933 2,305 1,024 630 1,000
400 1,069 2,385 1,024 800 1,000
500 1,069 2,961 1,300 800 1,000
600 1,069 3,299 1,640 800 1,000
700 1,214 3,040 1,540 850 1,000
800 1,214 3,380 1,640 850 1,000
900 1,214 3,740 1,640 850 1,000
1000 1,214 4,040 1,700 850 1,000
1100 1,523 3,196 1,400 1,100 1,100
1200 1,523 3,366 1,570 1,100 1,100
VERTICAL TYPE / Unit (mm)
MODEL
CAPACITY (GALLON) DIMENSION
A B C D
100 602 2,008 605 1,000
200 933 2,568 880 1,000
300 933 2,596 926 1,000
400 1,069 2,648 1,020 1,100
500 1,069 3,137 1,310 1,100
600 1,214 2,930 1,150 1,200
700 1,214 3,300 1,135 1,200
800 1,523 2,700 1,640 1,200
900 1,523 3,100 1,476 1,200
