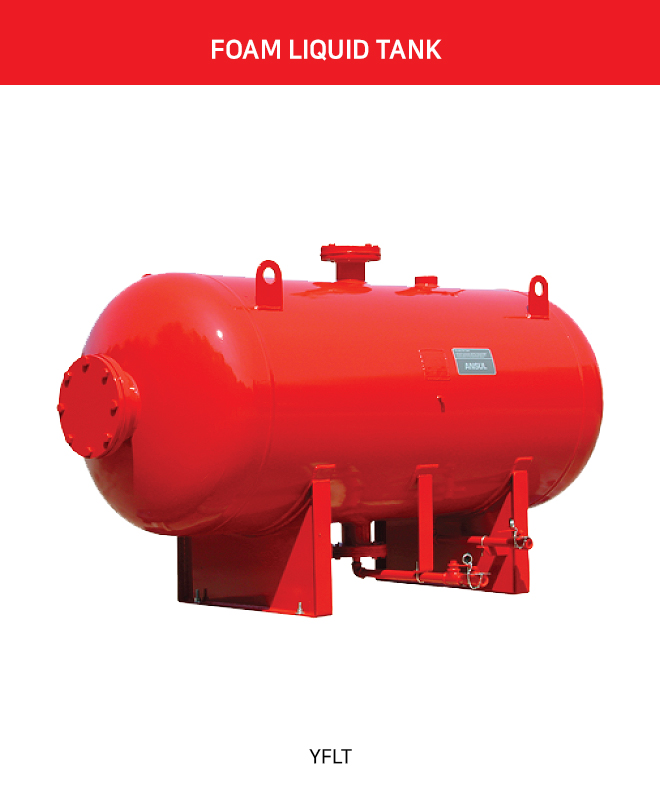

Foam Liquid Tank

This tank stores foam liquid. When a fire occurs, it operates to mix both water and foam liquid to create foam, then works as discharge equipment to put out a fire. There are three different system styles exist depend on how user mixes:
1 . Pressure Proportioning System
2. Pressure Side Proportioning System
3. Pump-Proportioning System

•
  YFLT

SPECIFICATIONS

SPECIFICATIONS

TYPE	Horizontal Internal Bladder Type	Vertical Internal Bladder Type
MATERIAL	Carbon Steel / Stainless Steel / BUNA-N Rubber(Bladder)
WORKING PRESSURE	0.7 ~ 0.9 MPa (Max 1.4 MPa)
DESIGN PRESSURE	1 MPa (Max 1.4 MPa)
TEST PRESSURE	2 MPa
PAINTING	Red or Yellow Epoxy paint coated (Surface) Epoxy urethane (Inside of Tank)
FLANGE	KS Standard / ANSI Standard

HORIZONTAL TYPE / Unit (mm)

MODEL

CAPACITY (GALLON)	DIMENSION
	A	B	C	D	E
100	602	1,816	820	340	800
200	808	2,218	1,000	570	800
300	933	2,305	1,024	630	1,000
400	1,069	2,385	1,024	800	1,000
500	1,069	2,961	1,300	800	1,000
600	1,069	3,299	1,640	800	1,000
700	1,214	3,040	1,540	850	1,000
800	1,214	3,380	1,640	850	1,000
900	1,214	3,740	1,640	850	1,000
1000	1,214	4,040	1,700	850	1,000
1100	1,523	3,196	1,400	1,100	1,100
1200	1,523	3,366	1,570	1,100	1,100

VERTICAL TYPE / Unit (mm)

MODEL

CAPACITY (GALLON)	DIMENSION
	A	B	C	D
100	602	2,008	605	1,000
200	933	2,568	880	1,000
300	933	2,596	926	1,000
400	1,069	2,648	1,020	1,100
500	1,069	3,137	1,310	1,100
600	1,214	2,930	1,150	1,200
700	1,214	3,300	1,135	1,200
800	1,523	2,700	1,640	1,200
900	1,523	3,100	1,476	1,200
