FOAM
EQUIPMENT

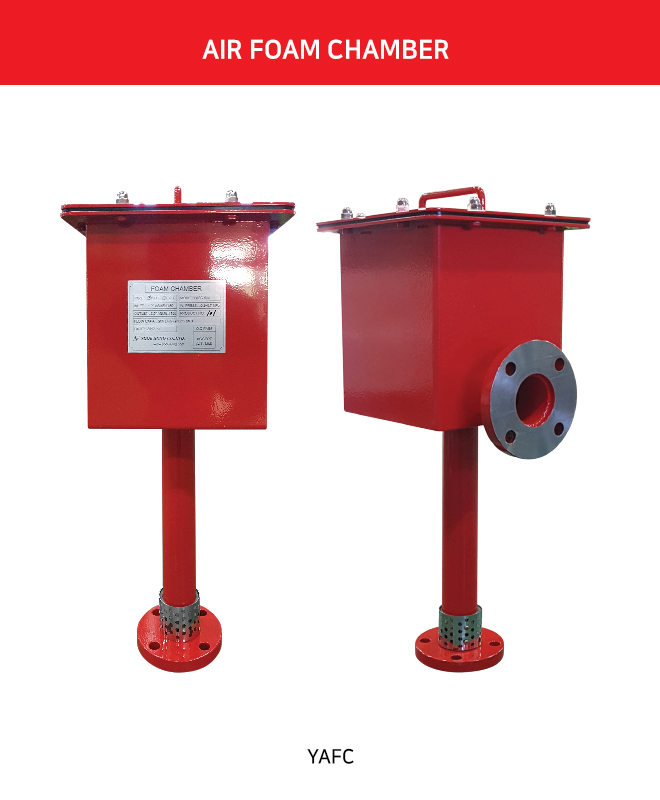

Air Foam Chamber

This item discharges foam liquid to put out a fire when oil tank and dangerous material storage starts to catch a fire. It is installed on top of tank and storage. There are also two different types to install and use for deflector style.

  • • Cone Roof Tank (CRT) type, a model is mainly II shape
  • • Floating Roof Tank (FRT) type and this is special type.

  •  YAFC
SPECIFICATIONS
MODEL
FLANGE TYPE TYPE MATERIAL DEFLECTOR PAINT
ANSI #150 Flange
KS 10K(16K) Flange 		Square Type Carbon Steel
Stainless Steel (STS304) 		C.R.T (Type-II)
F.R.T (Special) 		Red / Yellow
MODEL
TYPE SIZE DISCAHRGE CAPACITY
(0.35 MPa)		 H L
INLET OUTLET
YAFC-50A 2″ 2-½″ 100 ~ 250 L/min 450 210
YAFC-50B 2″ 3″ 100 ~ 350 L/min 450 210
YAFC-65 2-½″ 3″ 200 ~ 750 L/min 450 210
YAFC-80 3″ 4″ 450 ~ 1,000 L/min 500 260
YAFC-100 4″ 6″ 750 ~ 1,950 L/min 550 280
YAFC-150A 6″ 8″ 1,400 ~ 2,000 L/min 650 300
YAFC-150B 6″ 10″ 1,400 ~ 2.000 L/min 650 300
SPECIAL FEATURE
  • • To prevent rust and corrosion, inside of product is coated with phosphate
  • • It is able to attach outfall part to test a product
  • • Seal glass is exact made, followed by break-pressure standard data. It shut off the tank from counterflow
      problem (break-pressure standard: 0.7~1.75kg/cm2) - based on Korea Fire Equipment Inspection (KFI).
