HIGH PRESSURE
FIRE FIGHTING EQUIPMENT

High Pressure Fire Hose

It is a special fire hose to use when a massive fire occurs such as mountain fire, forest fire, high-rise building fire, and tunnel fire. This firefighting equipment is able to hold work-pressure more than 4.0 MPa. A high-pressure fire hose is double jacket made and has high durability, enhanced usability, safe, and speed of deployment due to our anti-twist coupling.

  • • To recognize fire hose in terrible condition, we have attached axial light and reflective sticker.
  • • 2013~2018 Seoul Metropolitan Fire & Disaster Headquarters choosed the best Item for the Forest fire fighting.

  •  YFH-D25H

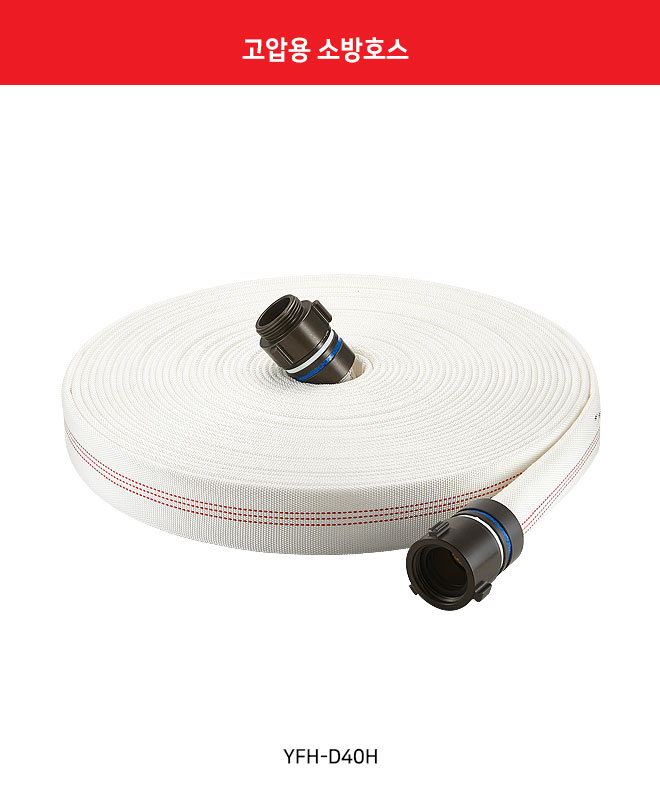

  •  YFH-D40H

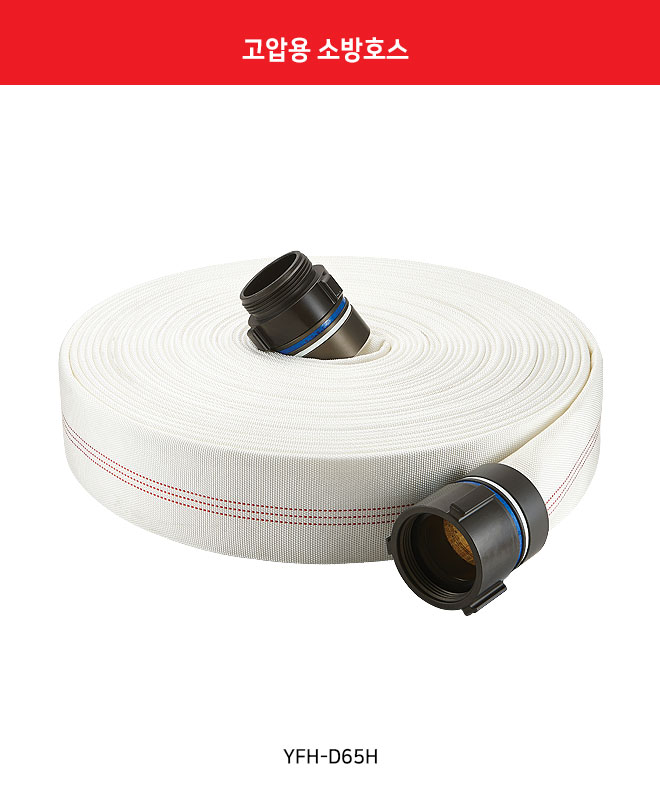

  •  YFH-D65H
SPECIFICATIONS
SPECIFICATIONS
MODEL YFH-D25H YFH-D40H YFH-D65H
SIZE FE25 (1″) X 30 (m)
(15 ~ 100 (m) Can be manufacture))		 FE40 (1-1/2″) X 30 (m)
(15 ~ 100 (m) Can be manufacture))		 FE65 (1-1/2″) X 30 (m)
(15 ~ 100 (m) Can be manufacture))
Material TPU (Hose)
Al-alloy (Coupling)
Pressure Use – 4.0 MPa
Test – 6.0 MPa
Burst – 8.0 MPa
공통사항 Attached with luminous and reflective sticker (Easy identification and securing of retreat)
Products passed KFI commissioned test
BS336, GOST, PT, NH, CAM-LOCK MACHINO coupling available.
