FIRE VALVE & CONNECTOR

BALL VALVE FOR FIRE TRUCK

This single way valve is used in fire truck to discharge or absorb water. It also could be used as firefighting monitor’s block valve.

  • • If connected to firefighting monitor, it should be installed bottom of firefighting monitor.

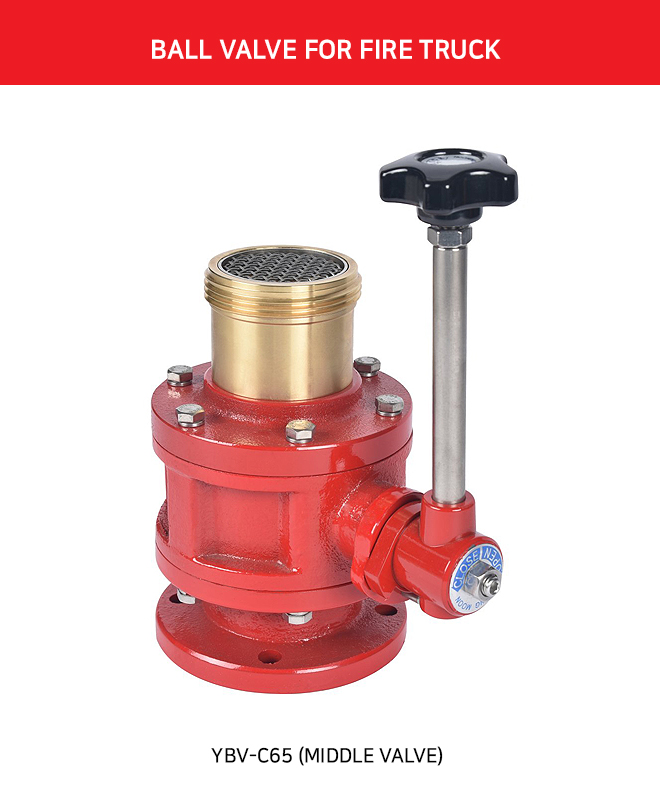

  • Middle valve



     YBV-C65

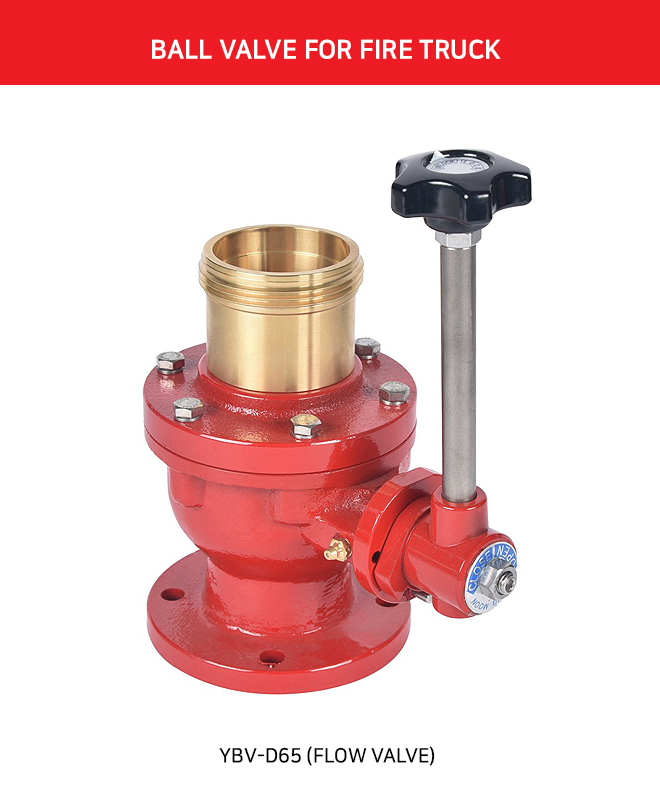

  • Flow valve



     YBV-D65

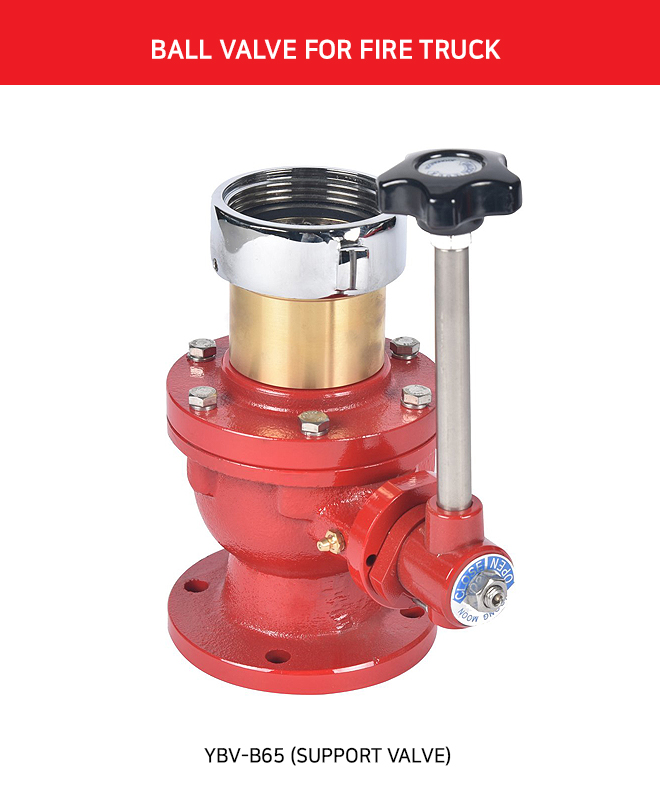

  • Support valve



     YBV-B65

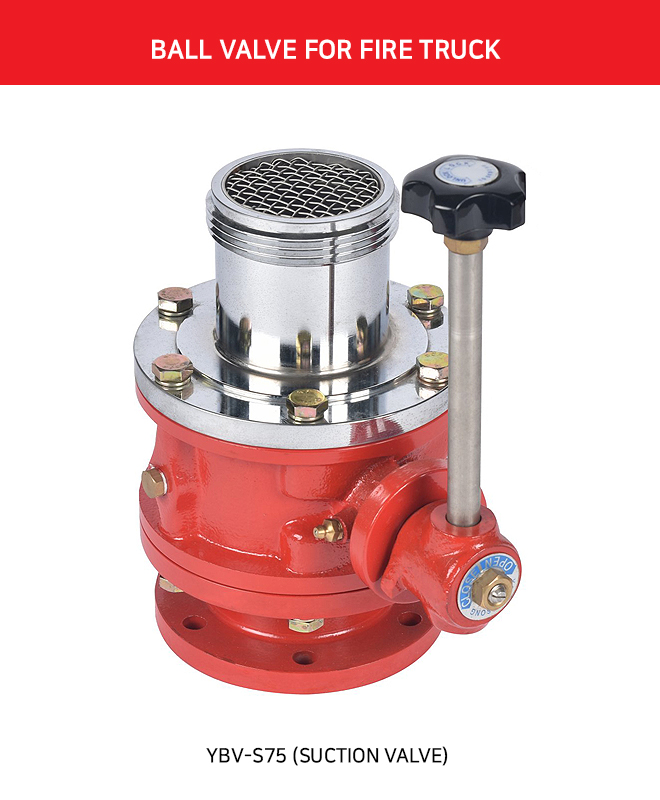

  • Suction valve



     YBV-S75

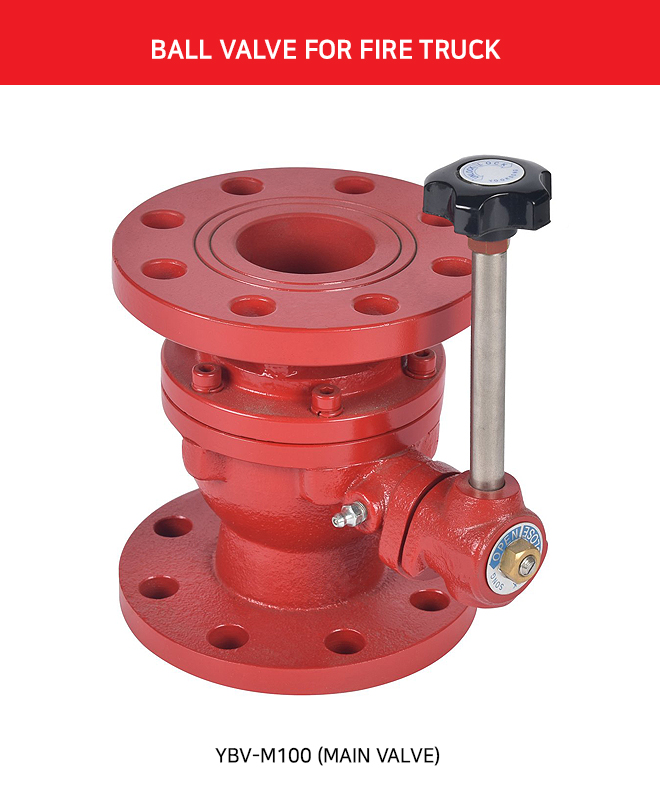

  • Main valve



     YBV-M100
SPECIFICATIONS
SPECIFICATIONS
MODEL YBV-C65 YBV-D65 YBV-B65 YBV-S75 YBV-S100 YBV-M100
CONN. SIZE (IN X OUT) FE65 (M) X FLG. 2½″ FLG. 2½″ X FE65 (M) FE65 (F) X FLG. 2½″ FE75 (M) X FLG. 3″ FE100 (M) X FLG. 4″ FLG.4″ X FLG. 4″
TEST PRESSURE 2.0 MPa
METERIAL CAST IRON + BRONZE CAST IRON
PAINTING COLOR : RED OR YELLOW FLG. TYPE : FF
REMARK 현장상황에 따라 볼밸브의 위치를 바꾸어 RH / LH 양 방향 가능하다. RH : RIGHT HAND LH : LEFT HAND
