FIRE VALVE & CONNECTOR

Pressure Reduce Device

These connectors are to depressurize working pressure. These are used when water discharge pressure exceeds the standard water pressure,

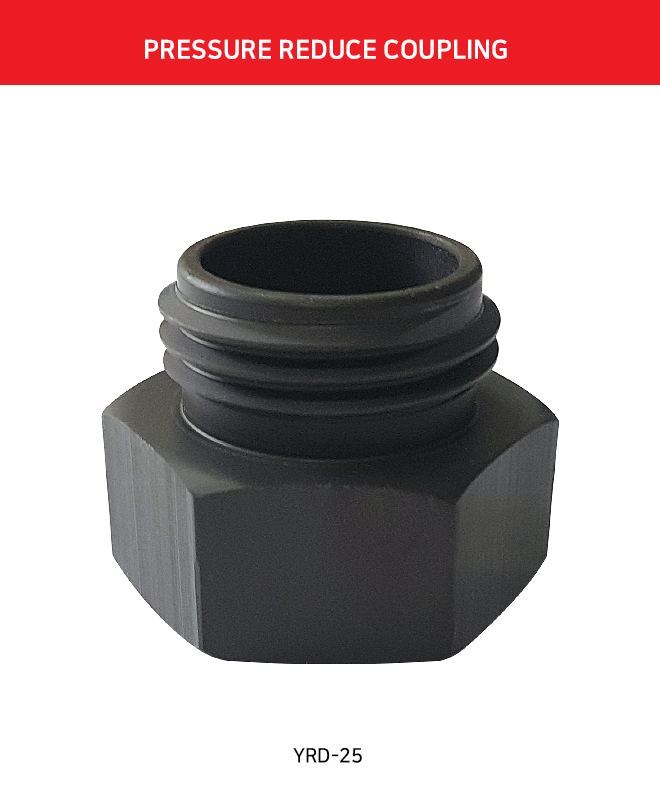

  •  YRD-25

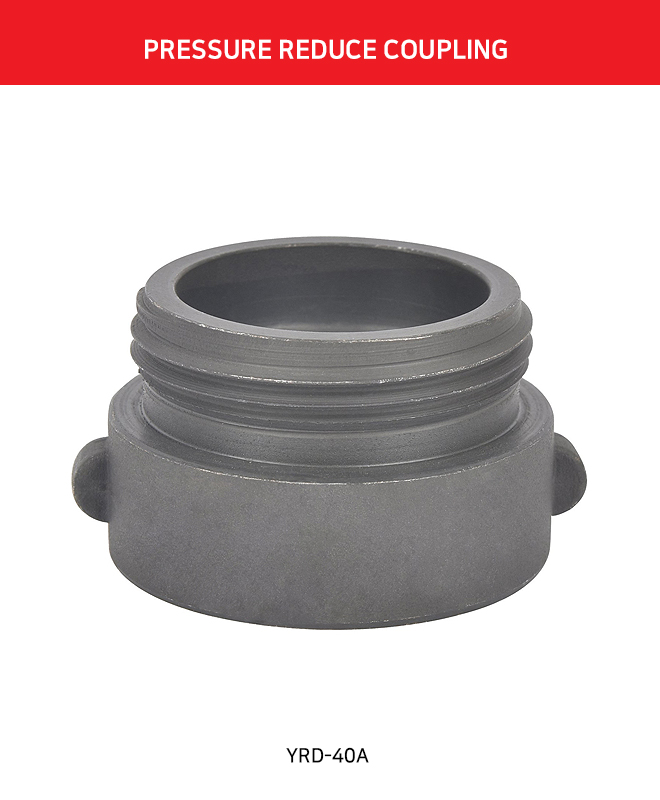

  •  YRD-40A

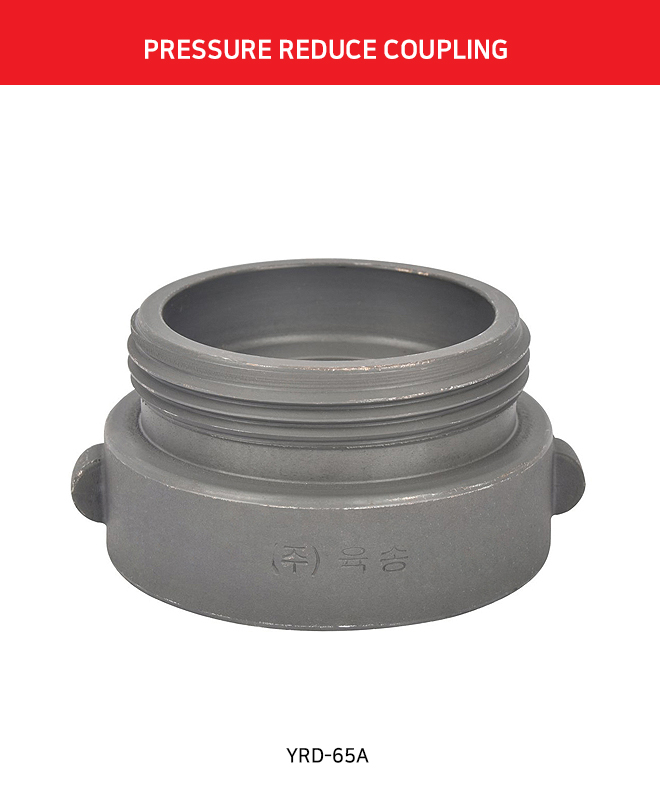

  •  YRD-65A

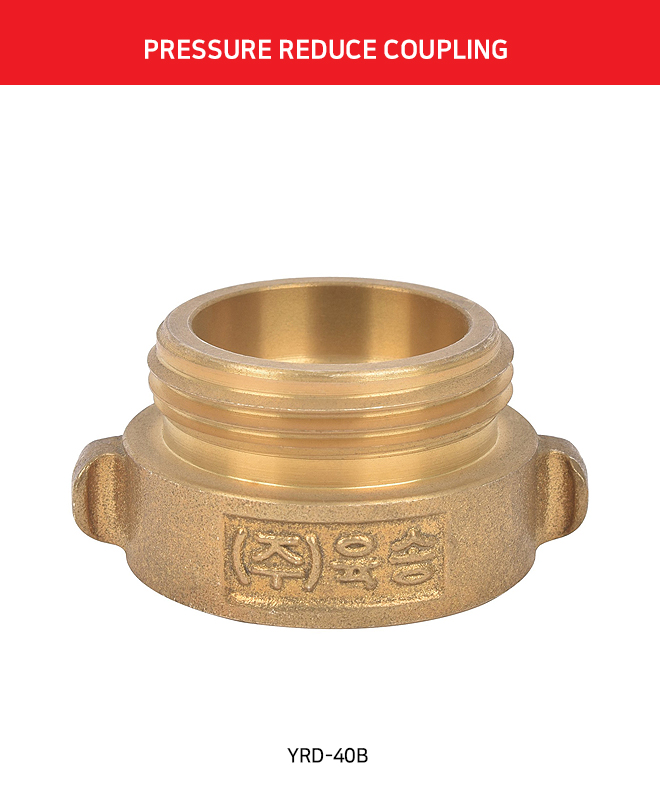

  •  YRD-40B

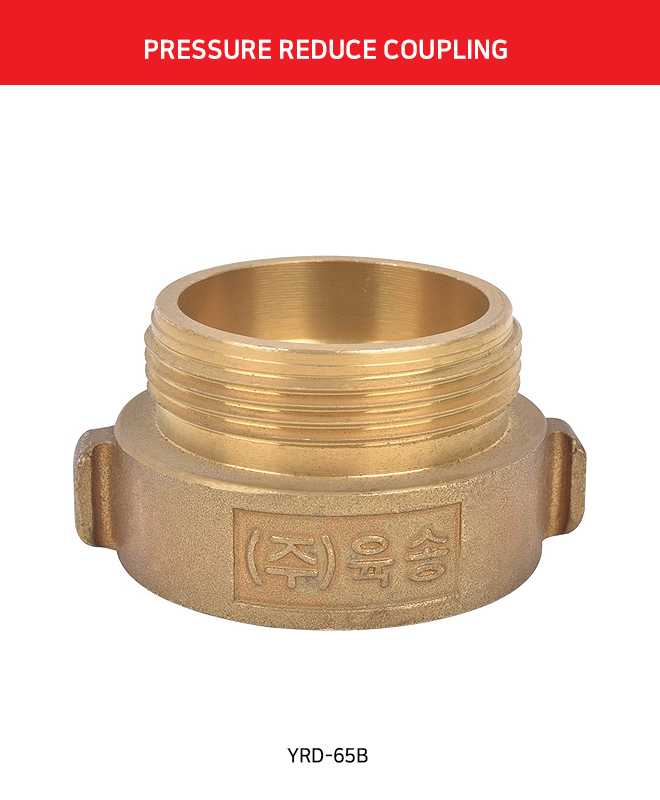

  •  YRD-65B
SPECIFICATIONS
SPECIFICATIONS
MODEL YRD-25 YRD-40A YRD-65A YRD-40B YRD-65B
CONN. SIZE FE25 X FE25 FE40 X FE40 FE65 X FE65 FE40 X FE40 FE65 X FE65
HOSE CONN. SIZE 2.0 MPa
LENGTH (mm) 24 36 54 36 54
MATERIAL AL-ALLOY BRONZE
