OUTDOOR FIRE HYDRANT

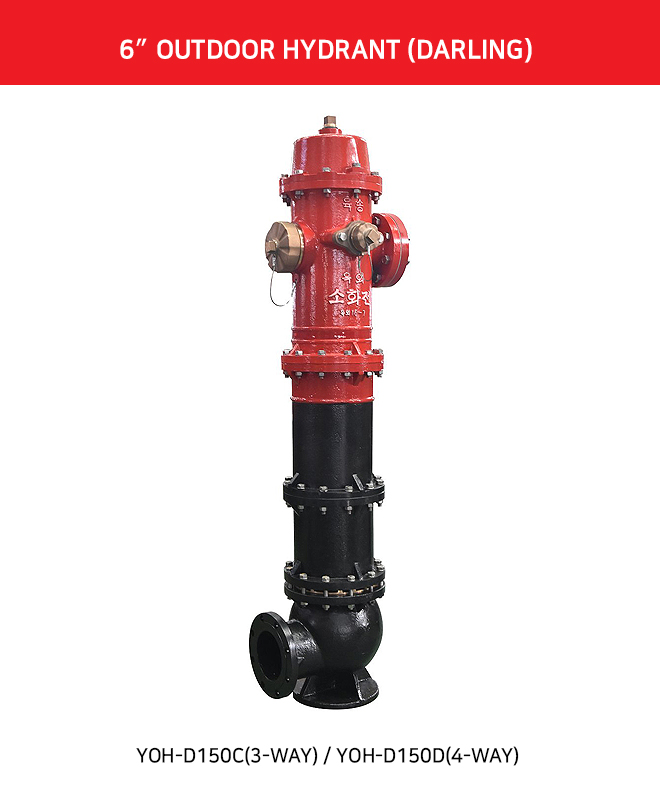

6″ Outdoor Hydrant (DARILING)

It is mostly used in plant facility. There are two different Darling types to install near plant facility.
1.First, it would be 3-way type and has a function called pump connector. It works as water supply to fire trucks when trucks are out of water.
2.Second, it would be 4-way type can be connected with firefighting monitor.
Both two different Darling type outdoor hydrant could be used with gate, ball, and glove valves

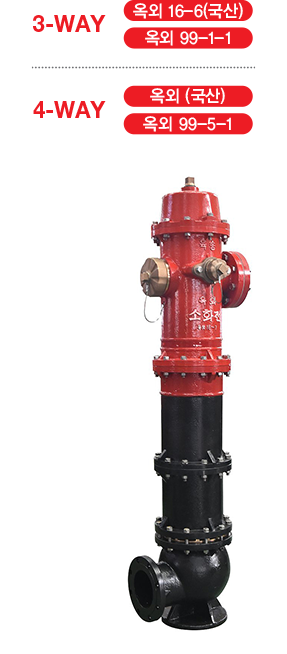

YOH-D150C (3-WAY)/YOH-D150D (4-WAY)
SPECIFICATIONS
TYPE 3 & 4-WAY DRY BARREL, ANTI FREEZING, SELF DRAINABLE
YSHD-150A FLANGE TYPE ENDED FOR HOSE CONNECTION VALVE
INLET CONNECTION 6″ ANSI 150 lbs FLANGE
HOSE CONNECTION TWO(2) X FE65 MALE THREAD w/CAP & CHAIN
PUMP CONNECTION ONE(1) X FE115 MALE THREAD w/CAP & CHAIN
MONITOR CONNECTION ONE(1) X 4″ ANSI 300 lbs FF FLANGE *Only for 4-WAY
TEST PRESSURE 2.0 MPa
PAINT A.G. - EPOXY PAINT IN RED OR YELLOW
U.G. - EPOXY PAINT IN BLACK
BODY MATERIAL CAST IRON OR DUCTILE
CAP MATERIAL AL-ALLOY OR BRONZE

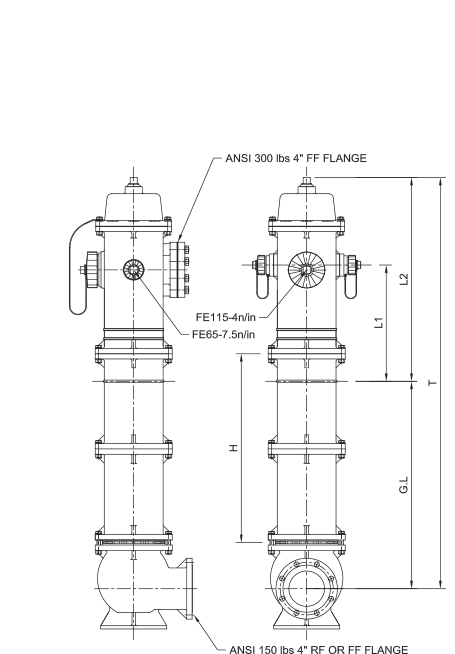

BURIED DEPTH (mm) G.L 830 950 1100 1250
DIMENSION (mm) H 742 862 1012 1162
L1 511 511 511 511
L2 935 935 935 935
T 1765 1885 2035 2185
