FIRE HOSE

FIRE HOSE FOR MARITIME

Our fire hose for maritime inside is coated with rubber to keep high wear resistance. And it is basically same as fire hose for ground use.

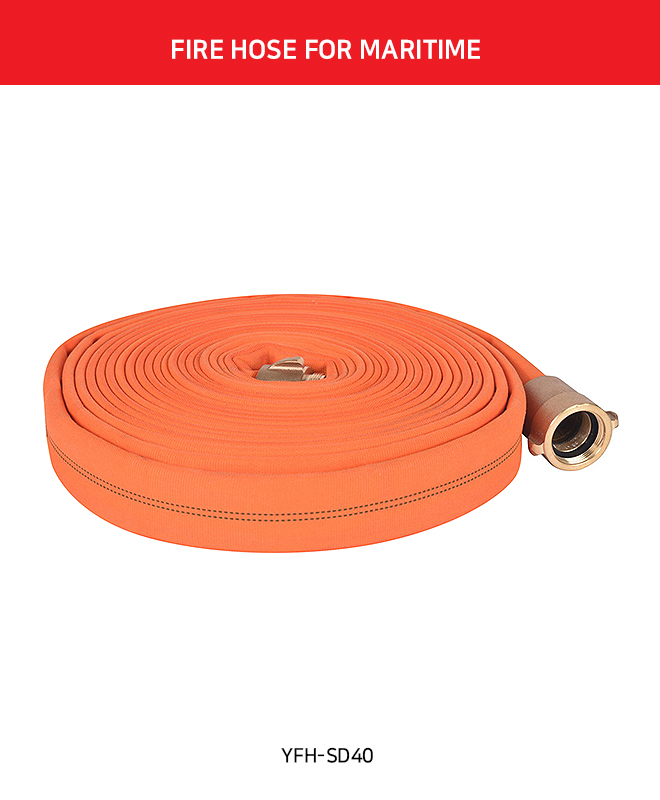

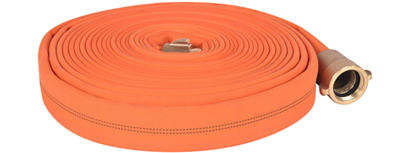

  • YFH-SD40

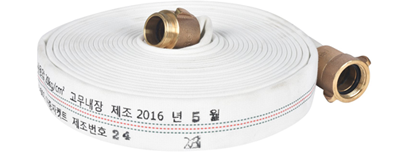

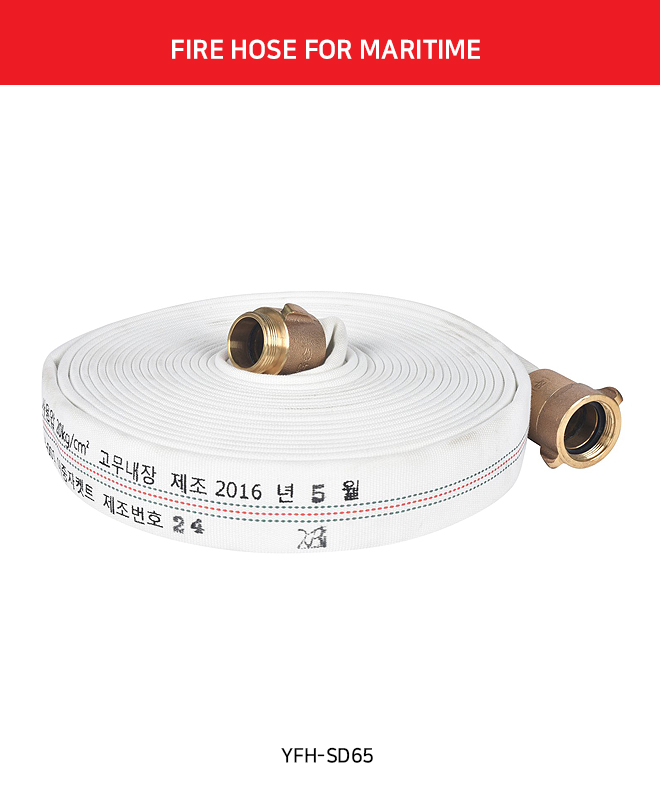

  • YFH-SD65
SPECIFICATIONS
SPECIFICATIONS
TYPE FIRE HOSE FOR MARITIME
MODEL YFH-SD40 YFH-SD65 YFH-SD100
SIZE NPSH1½″ NH2½″ NH4″
PRESSURE (MPa) WORK 2.0 2.0 1.0
TEST 4.0 4.0 2.0
BURST 6.0 6.0 4.0
MATERIAL JACKET : POLYESTER FILAMENT YARN
LINING : POLYURETHANE TUBE OR RUBBER
COUPLING : AL-ALLOY OR BRONZE
HOSE COUPLING FE, NPSH, NH
APPROVAL KR, FILK
