FIRE MONITOR

BALL-VALVE ASSEMBLED TYPE & GEAR TYPE

These two type firefighting monitors are used in an area where firefighters experience difficult access. For example, a multipurpose building, dangerous material storage, outdoor oil tank, liquified gas storage, an aviation shed, chemical factory, etc.

• •To use this product, it must connect to fire truck or outdoor hydrant.
• •Depend on operation method, it could be used as lever or gear type.

•

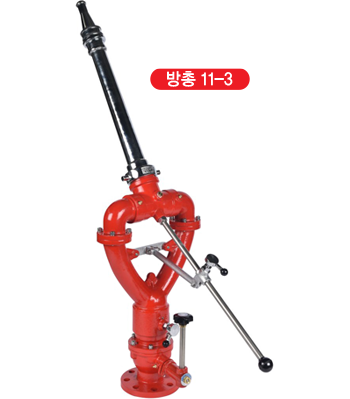

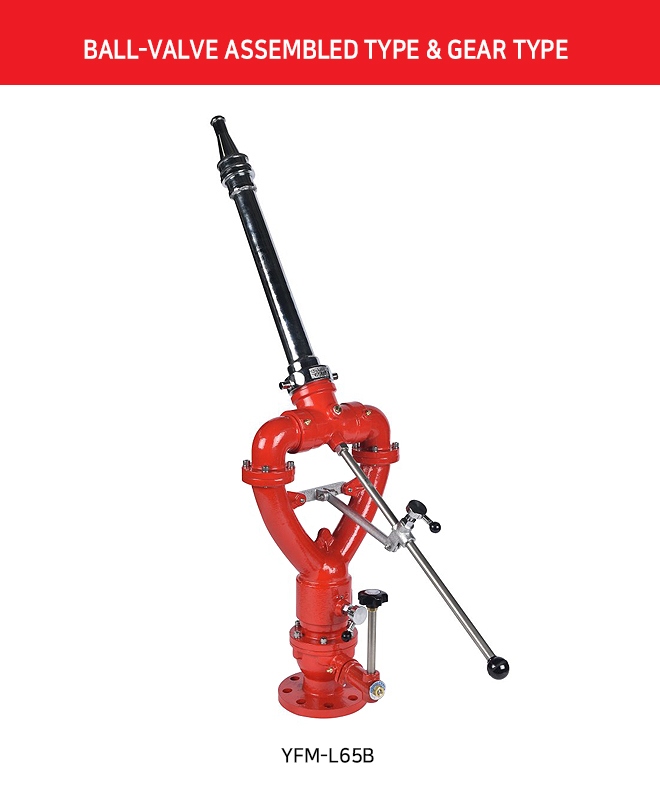

  YFM-BL65
•

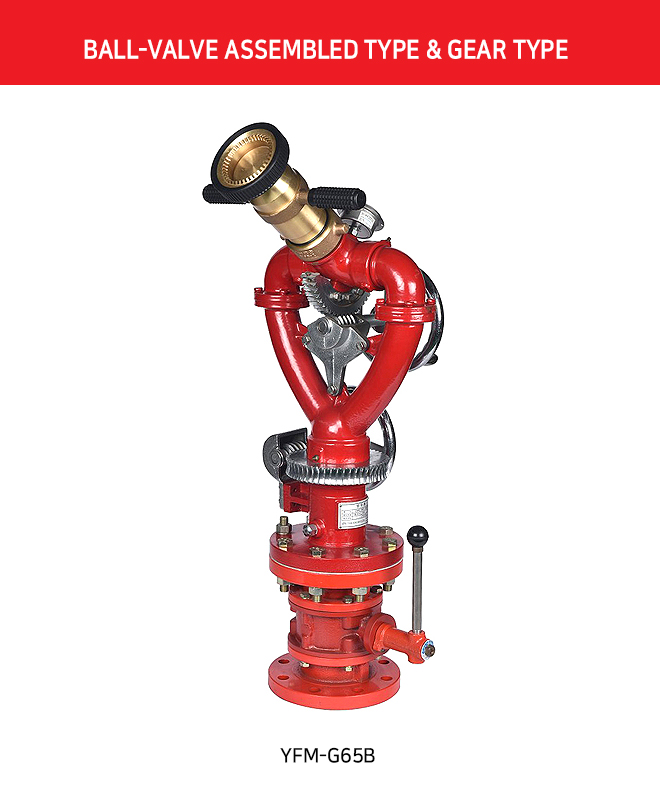

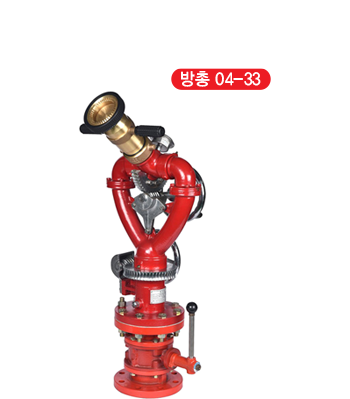

  YFM-BG65

SPECIFICATIONS

SPECIFICATIONS

MODEL		YFM-BL65	YFM-BG65
DRIVING TYPE		LEVER	GEAR
INLET SIZE		2.5" OR 4"	2.5" OR 4"
OUTLET SIZE		FE65	FE65
MATERIAL(BODY)		BRONZE	BRONZE
TEST PRESSURE		2.0 MPa	2.0 MPa
DRIVING RANGE	UP	+90°	+90°
	DOWN	-45°	-45°
	RIGHT/LEFT	360°	360°

*KFI APPROVED
