PORTABLE FIRE EXTINGUISHER

Halotron-1 Portable Fire Extinguisher 2.5 Kg / 3.5 Kg

Our fire extinguisher is the first domestically developed fire extinguisher using Halotron-1 (manufacturer: American Pacific), to replace an existing Halon fire extinguishing agent. And within Halotron-1, we are the first manufacturer made gas-type fire extinguisher and compare to other products, our fire extinguisher with Halotron-1 shows better performance to put out a fire. The Halotron-1 also has remarkably low ozone depletion potential (ODP), global warming potential (GWP), and harmless to human body compare to other fire extinguishing agents. This product does not cause secondary-damage after use, it can be used in an important institution and electrical facility.

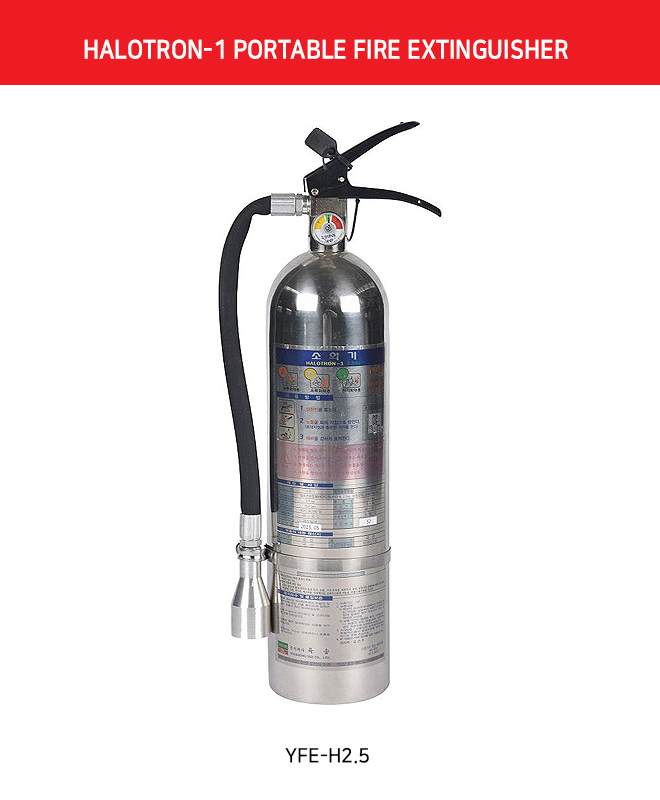

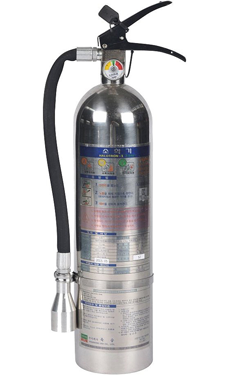

  •  YFE-H2.5

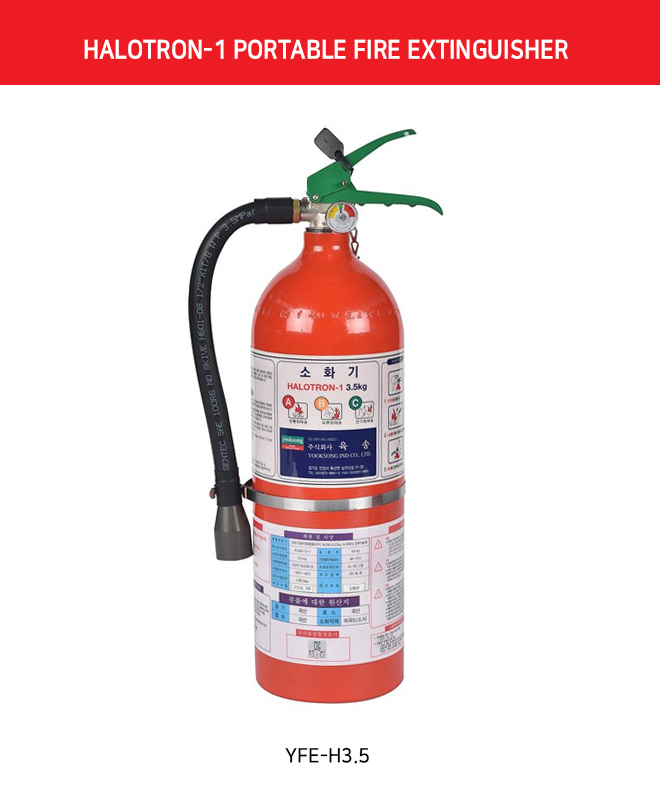

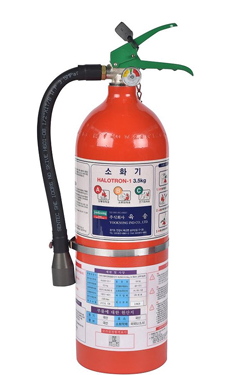

  •  YFE-H3.5
SPECIFICATIONS
SPECIFICATIONS
Model YFE-H2.5 YFE-H3.5
Certificated Number Hydrogen08-33 Hydrogen 05-12-1
Agent HCFC BLEND B
Agent’s Weight 2.5kg 3.5kg
Total weight 4.5kg 6.4kg
Ability level 1A,2B,C 1A,3B,C
Use time 10sec 15sec
Use distance 3 ~ 4m
Use temperature -20 ~ 40℃
Capacity 2.4L 4L
Pressure 6.4~10.4kg/㎠
Accumulator gas Argon
Safety valve operating temperature 72℃
Container material Stainless steel Aluminium
Containter test pressure 25.5kg/㎠ 24.5kg/㎠
COMPARATIVE TABLE
COMPARATIVE TABLE
PRODUCT TYPE HALOTRON-1 NOVEC1230 HFC236fa(FE-36) HFC227ea(FM200)
CHEMICAL FORMULA C2HCL2F3+Proprietary gas CF3CF2C(O)CF(CF3)2 CF3CH2CF3 CF3CHFCF3
MAIN PURPOSE OF USE Extinguishing Fire Extinguishing Fire Extinguishing Fire Extinguishing Fire
KFI EXTINGUISHER RATING A1, B3, C A1, B1, C A1, B1, C B2, C
KFI APPROVAL (AGENT) YES YES YES YES
KFI APPROVAL(P.EXTINGUISHER) YES YES YES NO
UL APPROVAL YES YES YES YES
NFPA-10 APPROVAL YES YES YES YES
Ozone Depletion Potential 0.014 0 0 0
Global Warming Potential 77 0.014 6300 3220
PRODUCT MANUFACTURE CO. YOOKSONG Only The Others The Others The Others
FAA AIRPORT EXTINGUISHER A PPROVAL YES
FAA INSIDE OF AIRPLANE EXTIN GUISHER APPROVAL YES

* Among the existing clean fire extinguishers, the ODP and GWP indexes are not the lowest, but their values are low values that do not harm the environmental factors, and the extinguishing ability is superior to other products.
