FIRE
NOZZLE

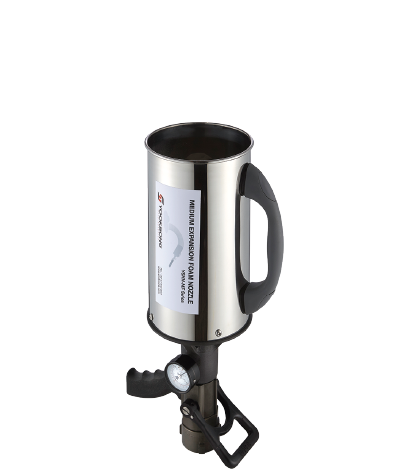

HANDLINE NOZZLE (MEDIUM EXPANSION FOAM NOZZLE)

A feature would be same as air foam nozzle, but specialty for this product would be it creates fifty times more of foam compare to air foam nozzle. This newly product is equipped with orifice and screen to decrease the weight of existing product, and also it only requires small amount of foam fire extinguishing agent where it makes user to put out the fire faster.

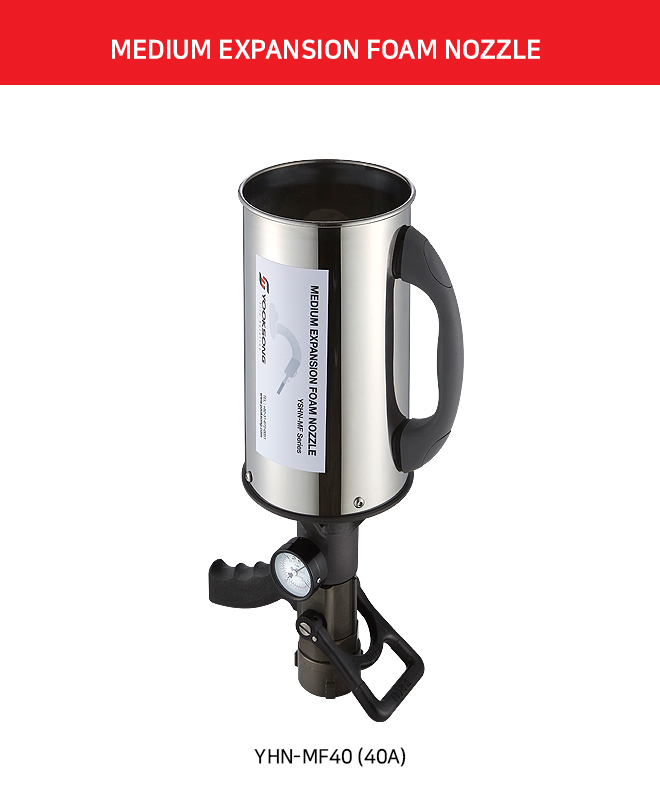

  • YHN-MF40 (40A)

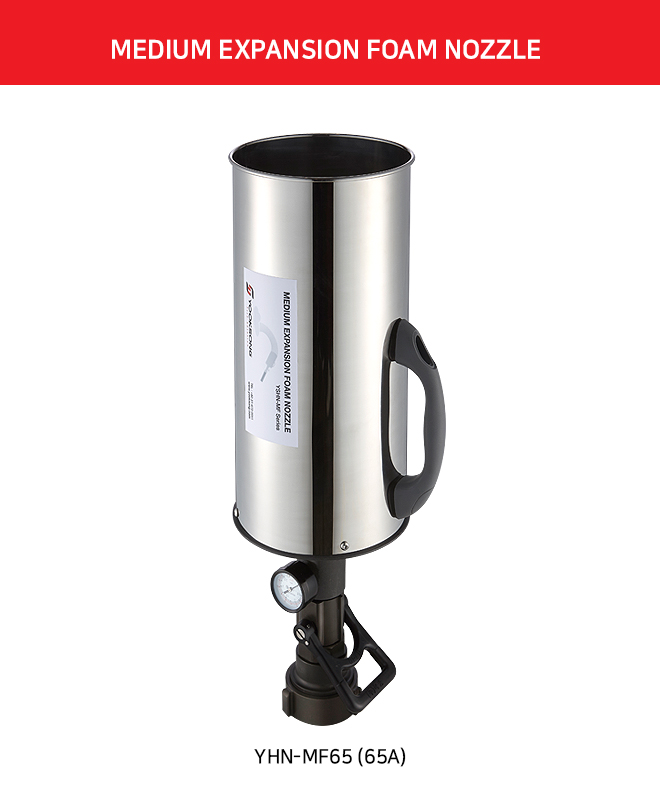

  • YHN-MF65 (65A)
SPECIFICATIONS
SPECIFICATIONS
SIZE FE40 (1½″) FE65(2½″)
FLOW RATE (0.7 MPa) Over 250 L/min Over 400 L/min
LENGTH (mm) 502 687
WEIGHT (kg) 3.2 4.6
MATERIAL Stainless Steel + Al-alloy
FOAM SCALE More than 50 times
