MONITOR NOZZLE (STRAIGHT TYPE NOZZLE)

This monitor nozzle (straight type) are for to connect to use in fire hydrants or firefighting monitor that are installed in a fire truck. It is able to control water vortex when a water passes through the tube line. And because of the control system when user shoots water, line forms straight instead of spreading out.

  • •It shoots long range while water forms straight line instead of spreading out
  • •Different nozzle-tip gives different water-flow rate and shooting range

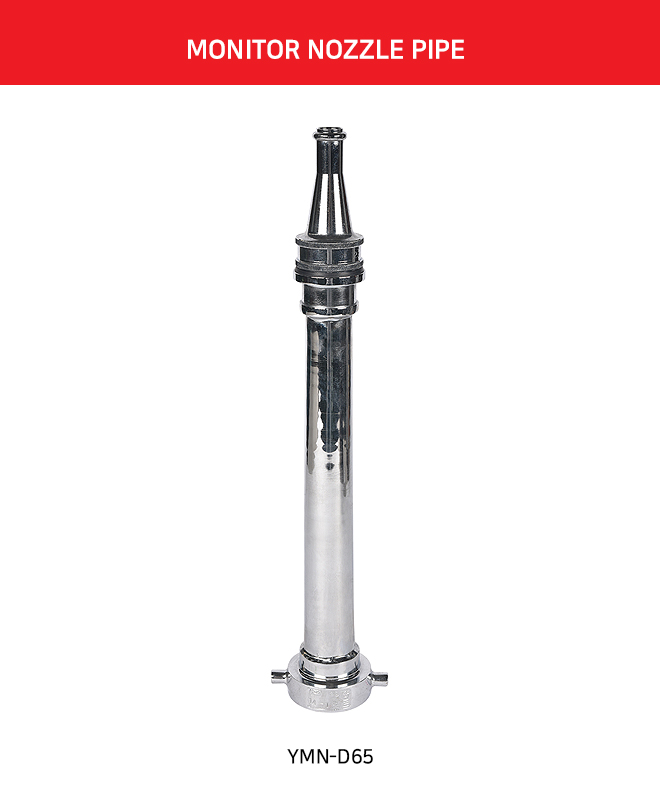

  •  YMN-D65

  •  YNT-B(20~41)
SPECIFICATIONS
SPECIFICATIONS
MODEL YMN-D65
SIZE FE65(2½″)
FLOW RATE(L/min) 690 ~ 2904
SHOOTING R.(m) 50 m (Tip23)
LENGTH 610 (mm)
APPROVAL KFI
MODEL
Shooting Pressure Standard - 0.7MPa
SIZE Ø 20 Ø 23 Ø 26 Ø 29 Ø 32 Ø 38 Ø 40 Ø 41
FLOW RATE 690 900 1130 1400 1770 2490 2764 2904
